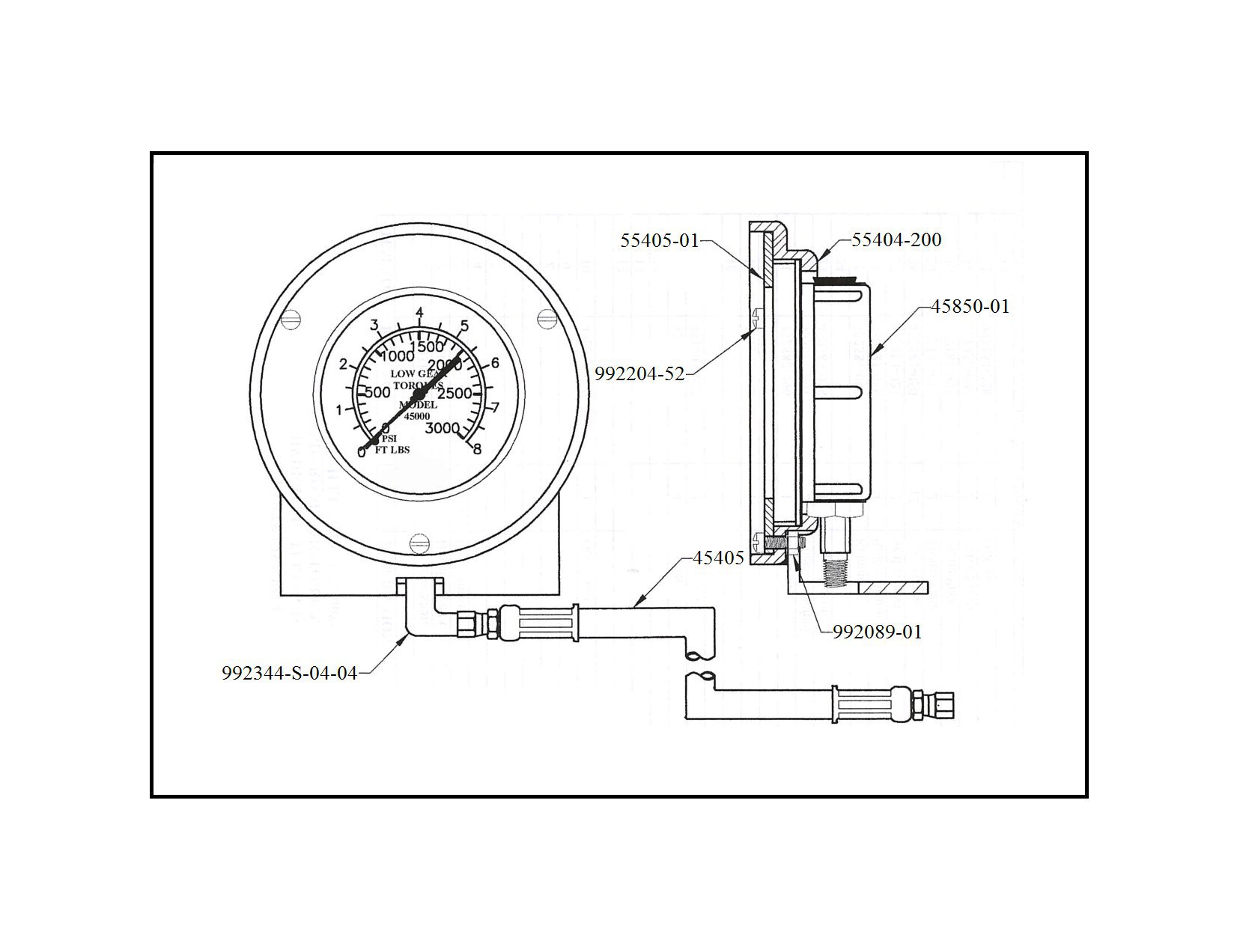

| CT Part # | 45000 Reference # | Weight (lbs) | Weight (kg) | Required | Description | Qty |
| 45405 | 700B-04-024-02 | .56 lbs | .254 kg | 1 | Gauge Hose Assembly, 20 1/2" Length | |
| 45850-01 | 45050-01 | 2.60 lbs | 1.180 kg | 1 | Gauge, 4.50; 45000: PSI/ft lbs | |
| 55404-200 | 55404-200 | 4.40 lbs | 1.998 kg | 1 | 4 1/2" Gauge Mount | |
| 55405-01 | 55405-01 | 1.03 lbs | .468 kg | 1 | 4 1/2" Gauge Retaining Plate | |
| 992089-01 | 992089-01 | .01 lbs | .005 kg | 3 | 1/4"-20 Stover Lock Nut | |
| 992204-52 | 992204-52 | .01 lbs | .005 kg | 3 | Brass Screw, 1/4" x 1" | |
| 992344-S-04-04 | 992344-S-04-04 | .15 lbs | .068 kg | 1 | 1/4" Female Pipe x #4 JIC 90 Deg Ell |
