CT Part #

BJ Part #

Weight (lbs)

Weight (kg)

Required

Description

Qty

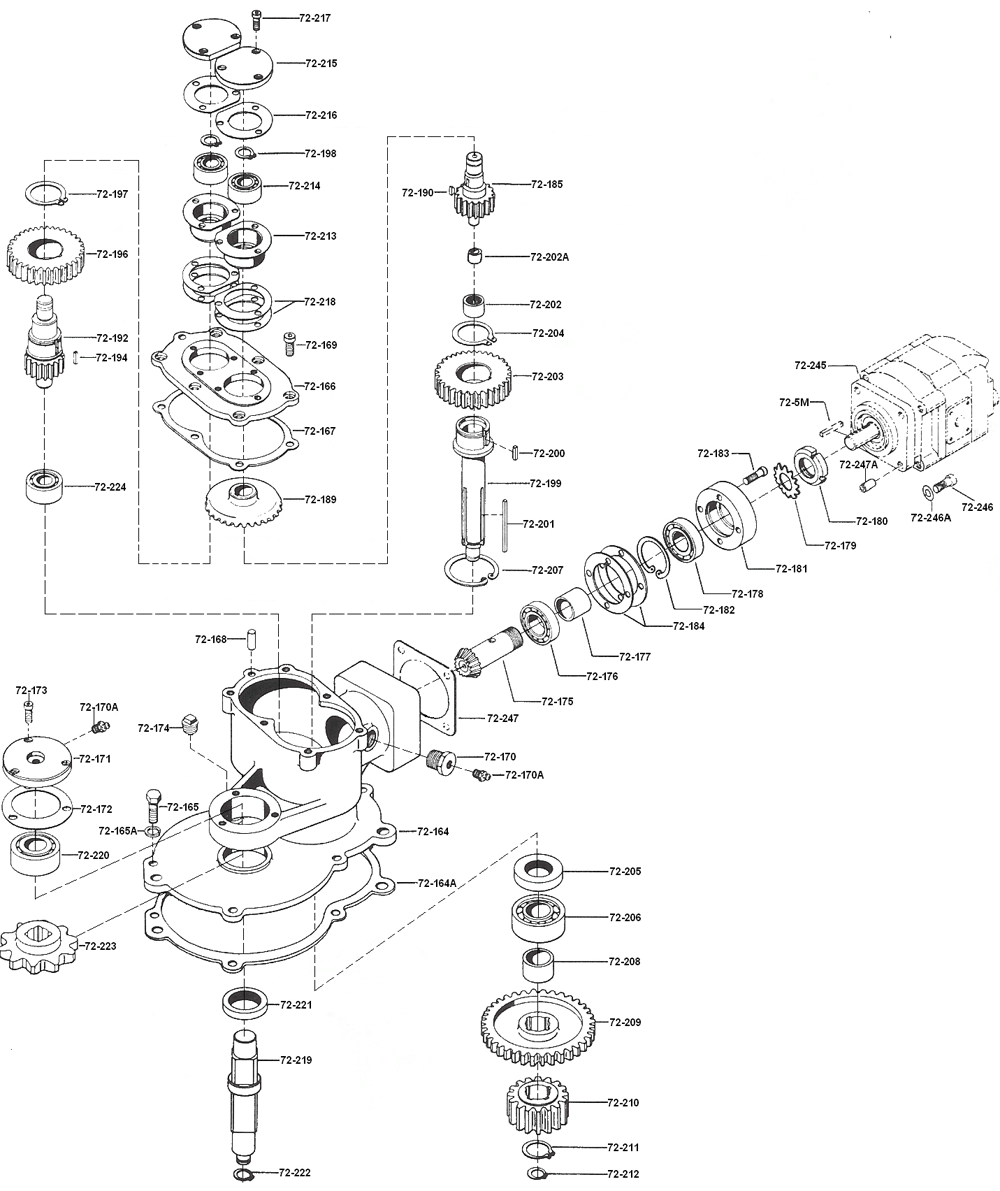

72-164	24907	60.00 lbs	27.216 kg	1	Transmission Case, "models RSX & CTSX only"
72-164A	16980	0.06 lbs	0.027 kg	1	Gear Box Cover Gasket
72-165	929067-14	0.15 lbs	0.068 kg	3	Hex Head Capscrew, 1/2"-13 X 1"
72-165-1	-	0.15 lbs	0.068 kg	2	Button Head Capscrew, 1/2"-13 X 1"
72-165A	939649-4	0.01 lbs	0.005 kg	3	Lockwasher, 1/2"
72-165A-1	-	0.01 lbs	0.005 kg	2	External Tooth Washer, 1/2"
72-166	24908	4.40 lbs	1.996 kg	1	Transmission Case Cover, "models RSX & CTSX only"
72-167	24913	0.03 lbs	0.014 kg	1	Transmission Case Cover Gasket, "models RSX & CTSX only"
72-168	943631-34	0.02 lbs	0.009 kg	1	Transmission Case Cover Dowel Pin
72-169	941271-27	0.02 lbs	0.009 kg	6	Transmission Case Cover Capscrew, 3/8" x 1/2",
72-170	940207-6	0.20 lbs	0.091 kg	1	Transmission Case Bushing, 3/4" x 1/8"
72-170A	940308-1	0.01 lbs	0.005 kg	2	Grease Fitting Alemite
72-171	15504	2.40 lbs	1.089 kg	1	Gear Box Cover Bearing Plate
72-172	16978	0.01 lbs	0.005 kg	1	Gear Box Cover Bearing Gasket
72-173	941271-47	0.02 lbs	0.009 kg	3	Gear Box Cover Bearing Plate Capscrew, 1/4" x 3/4"
72-174	940257-4	0.10 lbs	0.045 kg	1	Gear Case Oil Plug
72-175	24909	1.00 lbs	0.454 kg	1	Bevel Pinion
72-175Y	25940	3.21 lbs	1.456 kg	1	Bevel Pinion Cage Assembly, (PN. 72-175 thru 72-184)
72-176	979136-8	0.20 lbs	0.091 kg	1	Bevel Pinion Inboard Bearing
72-177	24920	0.20 lbs	0.091 kg	1	Bearing Spacer
72-178	979454-2	0.20 lbs	0.091 kg	1	Bevel Pinion Outboard Bearing
72-179	940406-7	0.08 lbs	0.036 kg	1	Bevel Pinion Lockwasher
72-180	940395-7	0.02 lbs	0.009 kg	1	Bevel Pinion Locknut
72-181	24919	1.40 lbs	0.635 kg	1	Bevel Pinion Bearing Cage
72-182	941157-244	0.01 lbs	0.005 kg	1	Bevel Pinion Bearing Cage Snap Ring
72-183	941271- 756	0.02 lbs	0.009 kg	4	Bearing Cage Capscrew, 5/16" x 1-1/4"
72-184	24922	0.02 lbs	0.009 kg	1	Bearing Case Shim Set
72-185	27372	1.40 lbs	0.635 kg	1	Bevel Gear Shaft
72-185Y	25972	3.01 lbs	1.365 kg	1	Bevel Gear Shaft Assembly, (PN. 72-185 thru 72-191)
72-189	24910	1.40 lbs	0.635 kg	1	Bevel Gear
72-190	940895-606	0.02 lbs	0.009 kg	2	Bevel Gear Key
72-192	27371	2.80 lbs	1.270 kg	1	Counter Shaft
72-192Y	27371-1	5.44 lbs	2.468 kg	1	Counter Shaft Assembly, (PN. 72-192 thru 72-198)
72-194	940017-816	0.02 lbs	0.009 kg	1	Drive Pinion Key
72-196	24915	2.60 lbs	1.179 kg	1	Driven Gear
72-197	941145-175	0.01 lbs	0.005 kg	1	Driven Gear Snap Ring
72-198	941145-78	0.01 lbs	0.005 kg	2	Counter Shaft Upper Bearing Snap Ring,
72-199	24911	3.00 lbs	1.361 kg	1	Drive Shaft
72-199Y	24945-1	14.50 lbs	6.577 kg	1	Drive Shaft Assembly, (PN. 72-199 thru 72-212)
72-200	940017-816	0.02 lbs	0.009 kg	1	Drive Shaft Key, (Short)
72-201	16720	0.05 lbs	0.023 kg	4	Drive Shaft Key, (Long)
72-202	942390-52	0.03 lbs	0.014 kg	1	Bevel Gear Shaft Lower Bearing, Outer Race
72-202A	942394-9	0.05 lbs	0.023 kg	1	Bevel Gear Shaft Lower Bearing, Inner Race
72-203	24915	2.60 lbs	1.179 kg	1	Driven Gear
72-204	941145-175	0.01 lbs	0.005 kg	1	Driven Gear Snap Ring
72-205	940295-215	0.05 lbs	0.023 kg	1	Drive Shaft Oil Seal
72-206	979093-8	1.00 lbs	0.454 kg	1	Drive Shaft Upper Bearing
72-207	941157-281	0.01 lbs	0.005 kg	1	Drive Shaft Oil Seal Retaining Ring
72-208	24921	0.05 lbs	0.023 kg	1	Drive Shaft Upper Bearing Spacer
72-209	15515	3.00 lbs	1.361 kg	1	High Speed Driver Gear
72-210	15535	3.50 lbs	1.588 kg	1	Low Speed Driver Gear
72-211	941145-137	0.01 lbs	0.005 kg	1	Low Speed Driver Gear Retaining Ring
72-212	941145-78	0.02 lbs	0.009 kg	1	Drive Shaft Bearing Retaining Ring
72-213	24918	0.80 lbs	0.363 kg	2	Upper Bearing Cage
72-213Y	25946	2.90 lbs	1.315 kg	2	Upper Bearing Cage Assembly, (PN. 72-213 thru 72-218)
72-214	979093-5	1.00 lbs	0.454 kg	2	Upper Bearing
72-215	24917	1.03 lbs	0.467 kg	2	Upper Bearing Cover
72-216	24926	0.02 lbs	0.009 kg	2	Upper Bearing Cover Gasket
72-217	941271-753	0.01 lbs	0.005 kg	6	Upper Bearing Cover Capscrew, 5/16" x 3/4"
72-218	24924	0.02 lbs	0.009 kg	2	Upper Bearing Cage Shim Set
72-219	15506	3.00 lbs	1.361 kg	1	Sliding Gear Shaft
72-220	979103-4	0.50 lbs	0.227 kg	1	Sliding Gear Shaft Upper Bearing
72-221	940295-214	0.20 lbs	0.091 kg	1	Sliding Gear Shaft Oil Seal
72-222	941145-78	0.01 lbs	0.005 kg	1	Sliding Gear Shaft Bearing Retaining Ring
72-223	15513	2.40 lbs	1.089 kg	1	Drive Sprocket
72-224	979093-6	0.40 lbs	0.181 kg	1	Counter Shaft Bottom Bearing
72-245	970250-6	32.80 lbs	14.878 kg	1	Standard Hydraulic Motor
72-245-HT	971003-5	42.40 lbs	19.232 kg	1	High Torque Hydraulic Motor
72-246	939084-33	0.03 lbs	0.014 kg	4	Motor Mounting Capscrew, 3/8" x 1"
72-246A	939370-9	0.02 lbs	0.009 kg	4	Motor Mounting Washer
72-247	24927	0.01 lbs	0.005 kg	1	Motor Gasket
72-247A	31101	0.01 lbs	0.005 kg	4	Motor Bushing
72-5M	970499-1247	0.01 lbs	0.005 kg	1	Motor Shaft Key
72-67	979054-304	0.40 lbs	0.181 kg	1	Sliding Gear Shaft Lower Bearing
72-68	979102-5304	0.40 lbs	0.181 kg	1	Drive Shaft Lower Bearing
